Operating temperature: -200 degrees to 260 degrees
Ease of processing: can flanging
Aging resistance: can be exposed to ozone and sunlight for a long time without aging
High transparency: The refractive index is the lowest among all plastics, and the flow of the medium in the pig can be viewed directly
Corrosion resistance: It can withstand all strong acids and strong oxidants except molten alkali metals, fluorinated media and those above 300°.
The role of strong reducing agent and various organic solvents
1. Name:

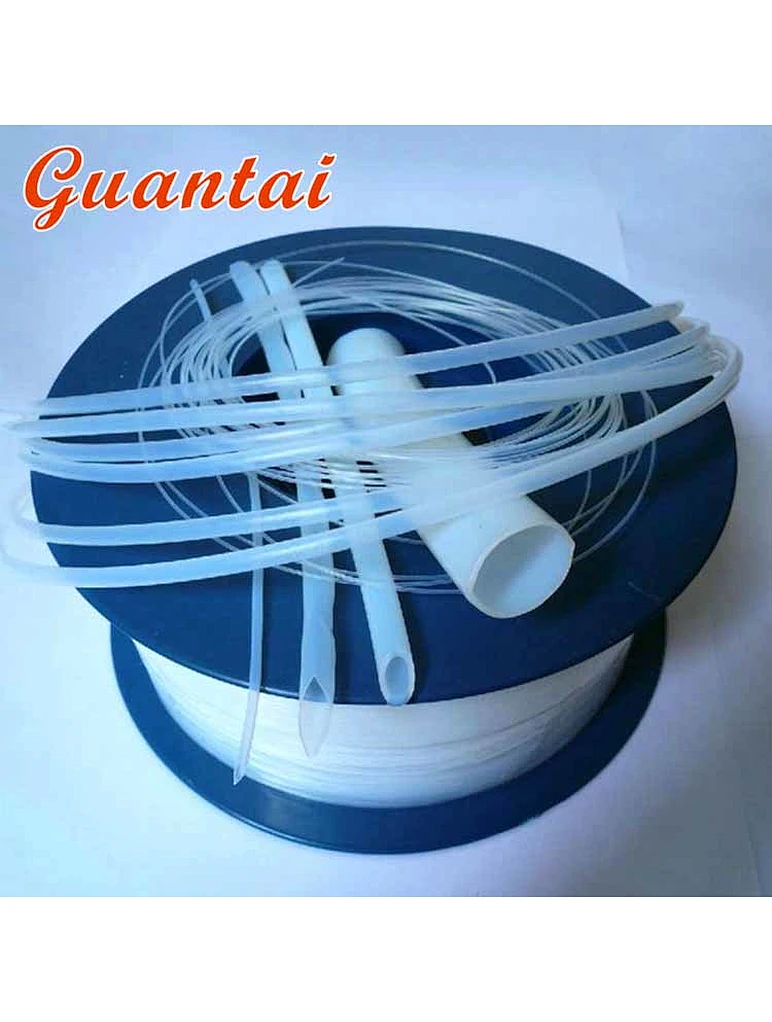

PTFE tube, F4 tube, PTFE tube, PTFE tube, Teflon tube, Teflon tube, Teflon tube, Teflon tube, Teflon tube, Teflon tube, Teflon tube , PTFE casing, plastic king tube
2. Color:
Common colors: milky white tube, translucent, black
Unusual colors: yellow, brown, green, blue, red
3. Purpose
●Chemical resistance, non-adhesive liquid transfer equipment joints are not covered and protected
●Sensor protection
●Metal balls are non-adhesive
●Protective cover for medicines under high temperature
●The outer covering of the optical fiber sheath
4. Features
Common features:
Operating temperature: -200 degrees to 260 degrees
Ease of processing: can flanging
Aging resistance: can be exposed to ozone and sunlight for a long time without aging
High transparency: The refractive index is the lowest among all plastics, and the flow of the medium in the pig can be viewed directly
Corrosion resistance: It can withstand all strong acids and strong oxidants except molten alkali metals, fluorinated media and those above 300°.
The role of strong reducing agent and various organic solvents
Unusual features:
Density: 2.16-2.20g/cm³
Volume resistance>1×1018
Surface resistance>2×1013
Arc resistance> 165 seconds without leakage
Low water absorption: water absorption rate <0.1%
Lowest coefficient of friction: the smallest coefficient of friction
The surface is not sticky: the known solid material head cannot stick to the surface
Non-combustibility: Will not burn in the air and meet the strict requirements for fire protection
Non-toxic: non-toxic, tasteless, physiologically inert, without any harm to people and the environment
5. Common specifications: inner diameter * outer diameter (unit: mm) other specifications can be customized
| Model (AWG) | Inner diameter (mm) | Outer diameter ( mm ) | ||
| Type S | Type T | L type | ||
| 30 | 0.30±0.08 | 0.80±0.08 | 0.70±0.08 | 0.60±0.08 |
| 28 | 0.38±0.08 | 0.88±0.08 | 0.78±0.08 | 0.68±0.08 |
| 26 | 0.46±0.08 | 0.96±0.08 | 0.86±0.08 | 0.76±0.08 |
| twenty four | 0.56±0.08 | 1.16±0.09 | 1.06±0.08 | 0.86±0.09 |
| twenty three | 0.66±0.08 | 1.26±0.09 | 1.16±0.09 | 0.96±0.09 |
| twenty two | 0.71±0.08 | 1.31±0.09 | 1.21±0.09 | 1.01±0.09 |
| twenty one | 0.81±0.08 | 1.41±0.09 | 1.31±0.09 | 1.11±0.09 |
| 20 | 0.86±0.08 | 1.66±0.09 | 1.46±0.09 | 1.16±0.09 |
| 19 | 0.96±0.10 | 1.76±0.10 | 1.56±0.09 | 1.26±0.10 |
| 18 | 1.07±0.10 | 1.87±0.10 | 1.67±0.09 | 1.37±0.10 |
| 17 | 1.19±0.10 | 1.99±0.10 | 1.79±0.10 | 1.49±0.10 |
| 16 | 1.34±0.10 | 2.14±0.10 | 1.94±0.10 | 1.64±0.10 |
| 15 | 1.50±0.12 | 2.30±0.10 | 2.10±0.10 | 1.80±0.11 |
| 14 | 1.68±0.12 | 2.48±0.11 | 2.28±0.10 | 2.08±0.12 |
| 13 | 1.93±0.12 | 2.73±0.11 | 2.53±0.11 | 2.33±0.12 |
| 12 | 2.16±0.12 | 2.96±0.11 | 2.77±0.11 | 2.60±0.13 |
| 11 | 2.41±0.14 | 3.21±0.12 | 3.01±0.11 | 2.81±0.13 |
| 10 | 2.69±0.14 | 3.49±0.12 | 3.29±0.12 | 3.01±0.14 |
| 9 | 3.00±0.16 | 4.00±0.13 | 3.80±0.12 | 3.40±0.15 |
| 8 | 3.38±0.16 | 4.38±0.13 | 4.18±0.13 | 3.80±0.16 |
| 7 | 3.76±0.16 | 4.76±0.14 | 4.56±0.13 | 4.20±0.17 |
| 6 | 4.22±0.18 | 5.22±0.14 | 4.92±0.14 | 4.70±0.18 |
| 5 | 4.72±0.18 | 5.72±0.15 | 5.42±0.15 | 5.32±0.25 |
| 4 | 5.28±0.20 | 6.28±0.16 | 6.02±0.16 | 5.88±0.25 |
| 3 | 5.94±0.20 | 6.94±0.17 | 6.74±0.17 | 6.54±0.25 |
| 2 | 6.68±0.20 | 7.68±0.18 | 7.48±0.18 | 7.28±0.25 |
| 1 | 7.46±0.20 | 8.46±0.19 | 8.29±0.19 | 8.06±0.25 |
