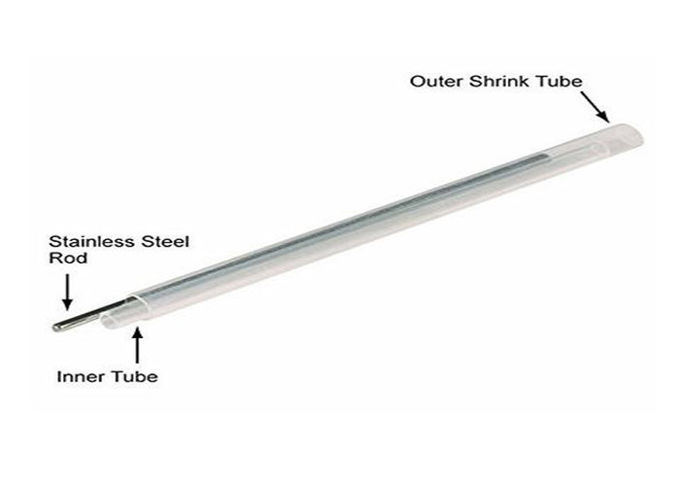

Splice Protector Fusion Fiber Optic Heat Shrink Sleeve Single Fiber Core Transparent
60mm
Product Name: Heat Shrink Fiber Optic Splice Protector
Color: Transparent
Fiber Core: Single Fiber
Outer Tube Diameter: 2.0-3.0mm
Length: 60mm
Feature: High Temperature Resistance Stainless Reinforcing
Shrinking Temperature: -45~ 110℃
Package: 100pcs/bag
Sample: Free Provided
Customize: Accept
Color: Transparent
Fiber Core: Single Fiber
Outer Tube Diameter: 2.0-3.0mm
Length: 60mm
Feature: High Temperature Resistance Stainless Reinforcing
Shrinking Temperature: -45~ 110℃
Package: 100pcs/bag
Sample: Free Provided
Customize: Accept
Quantity

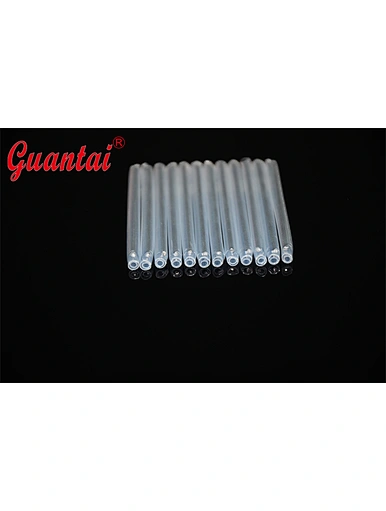

Fiber Optic Heat Shrink Sleeve Product Description:

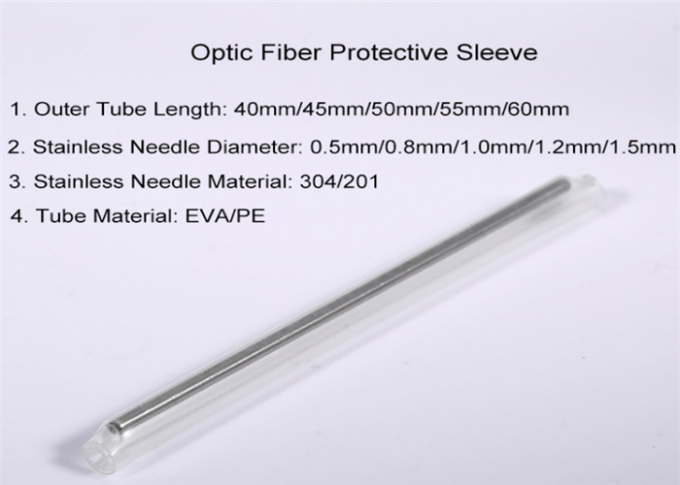

Fiber Optic Heat Shrink Sleeve Parameter:
Type | Splice Protection Sleeves | Fusion Tube | Steel Rod | Package | |||
| O.D.after recovered (±0.1mm) | length(L) (±1mm ) | Inside dia.(D) (±0.1mm) | Length (±1mm) | Dia.(d) (±0.1mm) | Length (±1mm) | ||
| FOSP-3.0x60H | 3.0 | 60 | 1.5 | 60 | 1.5 | 55 | 100pcs/bag |
| FOSP-3.0x55H | 3.0 | 55 | 1.5 | 55 | 1.5 | 50 | 100pcs/bag |
| FOSP-3.0x45H | 3.0 | 45 | 1.5 | 45 | 1.5 | 40 | 100pcs/bag |
| FOSP-3.0x40H | 3.0 | 40 | 1.5 | 40 | 1.5 | 35 | 100pcs/bag |
| FOSP-2.6x60H | 2.6 | 60 | 1.5 | 60 | 1.2 | 55 | 100pcs/bag |
| FOSP-2.6x55H | 2.6 | 55 | 1.5 | 55 | 1.2 | 50 | 100pcs/bag |
| FOSP-2.6x45H | 2.6 | 45 | 1.5 | 45 | 1.2 | 40 | 100pcs/bag |
| FOSP-2.6x40H | 2.6 | 40 | 1.5 | 40 | 1.2 | 35 | 100pcs/bag |
| FOSP-2.4x60H | 2.4 | 60 | 1.5 | 60 | 1.0 | 55 | 100pcs/bag |
| FOSP-2.4x55H | 2.4 | 55 | 1.5 | 55 | 1.0 | 50 | 100pcs/bag |
| FOSP-2.4x45H | 2.4 | 45 | 1.5 | 45 | 1.0 | 40 | 100pcs/bag |
| FOSP-2.4x40H | 2.4 | 40 | 1.5 | 40 | 1.0 | 35 | 100pcs/bag |
Fiber Optic Heat Shrink Sleeve Features
• Protect connection point,improve the mechanical strength,it is most reliable way to protect the fusion• Easy to operate,reducing the risk of fibre damage during installation
• Transparent tube,it is easy to see the status of fibre optical closure
• Min.shrinks temperatuer:120℃,shrink very fast and very easy to installation
• Work temperature high (-55°C~100°C), widely used
• Sealing structure let closure have good resistance to temperature and humidity performance
Fiber Optic Heat Shrink Sleeve Certification:

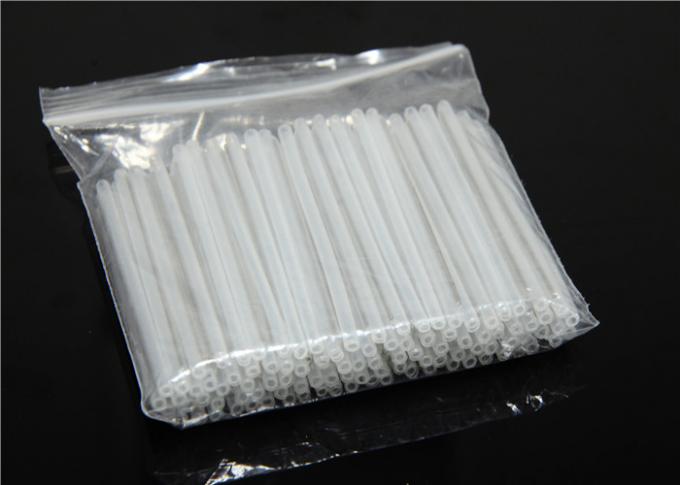

Package of Fiber Optic Heat Shrink Sleeve :
