It is widely used in important scientific and technological industries such as electronics, computers, electrothermal, aerospace, military, communications, etc. It is commonly used in hydraulic pipelines and their joint parts to protect pipelines from corrosion. Due to its very high mechanical strength and extremely low coefficient of friction, it is the preferred protective product for protecting stressed shafts and shaft related products.

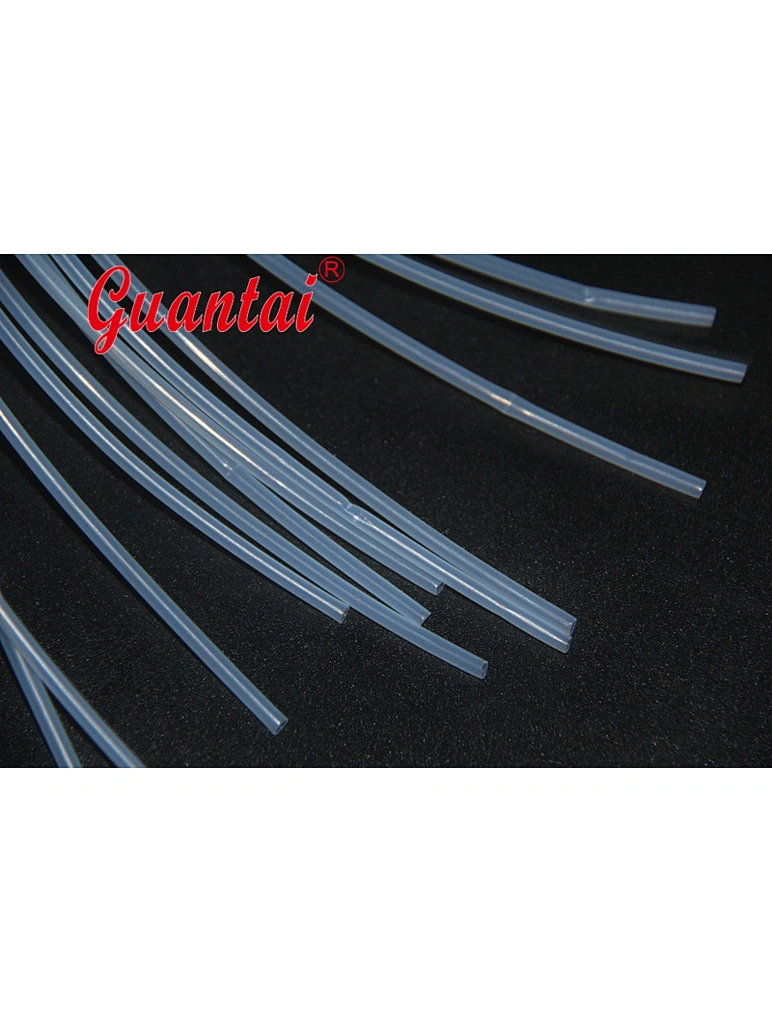

Teflon heat shrinkable pipe is made of imported high-quality polytetrafluoroethylene (commonly known as plastic king) resin and processed by special methods. This product has the advantages of high temperature resistance, high pressure resistance, corrosion resistance, wear resistance, and good mechanical strength. It is widely used in various fields such as machinery, electronic chemistry, communication, etc.
Characteristics
1. Operating temperature: - 65 ℃ to+260 ℃
2. Minimum shrinkage temperature: 350 ℃
3. Shrinkage ratio: 1.7:1
4. Standard color: transparent
5. Environmental standards: Comply with REACH and RoHS environmental standards
Withstand voltage level: 600V
Property | Test method | Typical data |
Tensile strength | ASTM D 2671 | 17.3MPa(Min) |
Elongation at break | ASTM D 2671 | 200%(Min) |
Tensile strength after ageing (350℃/96hrs) | UL 224 | 17.3MPa(Min) |
Elongation after ageing (350℃/96hrs) | UL 224 | 200%(Min) |
Heat shock(260℃/4hrs) | ASTM D 2671 | No crack |
Dielectric strength | ASTM D 2671 | 31.5kV/mm(Min) |
Volume resistance | ASTM D 876 | 1016Ω.cm(Min) |
Low-temperature flexibility(-65℃/4hr) | ASTM D 2671 | No crack |
Flame resistance | UL 224,VW-1 | pass |
Size(mm) | Internal Diameter(mm) | Wall Thicknes（mm） | |
Expanded | After Recovery | After Recovery | |
Ф0.5 | 0.7±0.2 | ≤0.4 | 0.15±0.03 |
Ф1.0 | 1.0±0.2 | ≤0.6 | 0.15±0.03 |
Ф1.5 | 1.5±0.2 | ≤0.9 | 0.15±0.03 |
Ф2.0 | 2.0±0.2 | ≤1.3 | 0.15±0.03 |
Ф2.5 | 2.5±0.2 | ≤1.5 | 0.2±0.03 |
Ф3.0 | 3.0±0.2 | ≤1.8 | 0.2±0.03 |
Ф3.5 | 3.5±0.2 | ≤2.0 | 0.2±0.03 |
Ф4.0 | 4.0±0.3 | ≤2.5 | 0.2±0.03 |
Ф4.5 | 4.5±0.3 | ≤2.8 | 0.25±0.03 |
Ф5.0 | 5.0±0.3 | ≤3.0 | 0.25±0.03 |
Ф6.0 | 6.0±0.3 | ≤3.8 | 0.25±0.03 |
Ф7.0 | 7.0±0.3 | ≤4.0 | 0.25±0.03 |
Ф8.0 | 8.0±0.3 | ≤4.8 | 0.25±0.03 |
Ф9.0 | 9.0±0.3 | ≤5.0 | 0.3±0.03 |
Ф10.0 | 10.0±0.3 | ≤6.0 | 0.3±0.03 |
Ф11.0 | 11.0±0.3 | ≤6.8 | 0.3±0.03 |
Ф12.0 | 12.0±0.3 | ≤7.0 | 0.38±0.01 |
Ф13.0 | 13.0±0.3 | ≤7.6 | 0.38±0.01 |
Ф14.0 | 14.0±0.3 | ≤8.2 | 0.38±0.01 |
Ф15.0 | 15.0±0.3 | ≤8.8 | 0.38±0.01 |
Ф16.0 | 16.0±0.3 | ≤9.4 | 0.38±0.01 |
Ф17.0 | 17.0±0.3 | ≤10.0 | 0.38±0.01 |
Ф18.0 | 18.0±0.3 | ≤10.5 | 0.6±0.1 |
Ф19.0 | 19.0±0.3 | ≤11.2 | 0.6±0.1 |
Ф20.0 | 20.0±0.3 | ≤11.8 | 0.6±0.1 |
Ф21.0 | 21.0±0.3 | ≤12.3 | 0.6±0.1 |
Above is Type L Telflon heat shrink tube，customized can be accepted | |||
