Application: Protect Splicing Point
Model Number: FOSP-2.0x60
Color: Clear
Material: EVA
Length: 60mm
Feature: High Temperature
Resistance Stainless Reinforcing
Shrinking Temperature: -45~ 110℃
Sample: Free Provided
Customize: Accpet

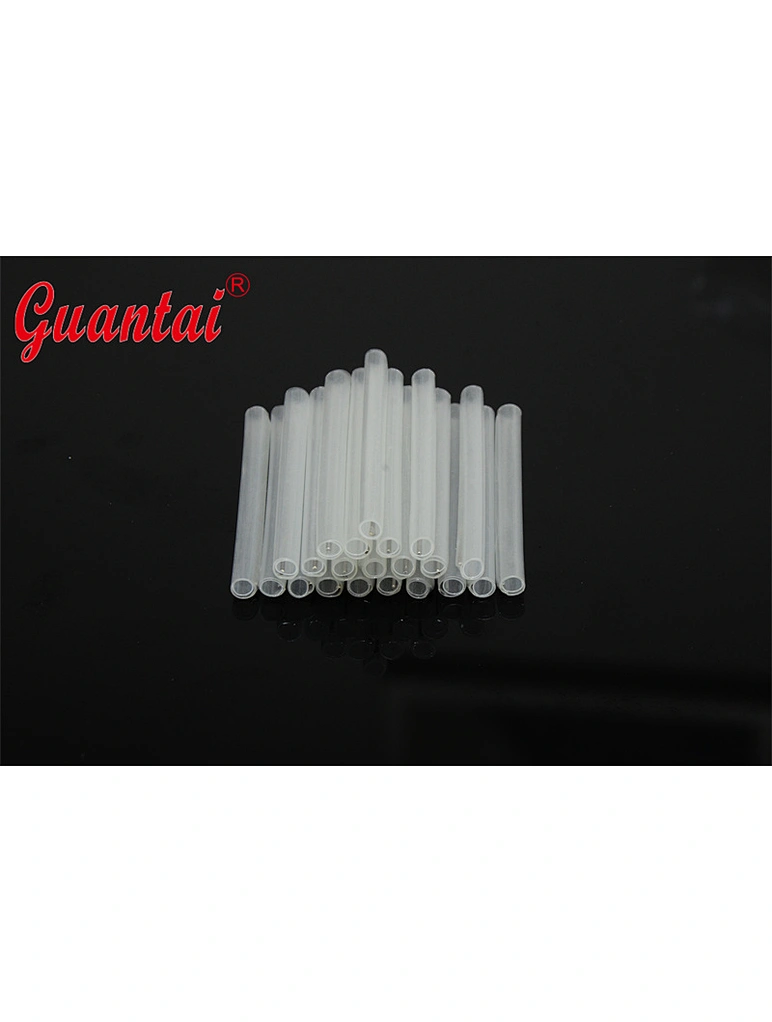

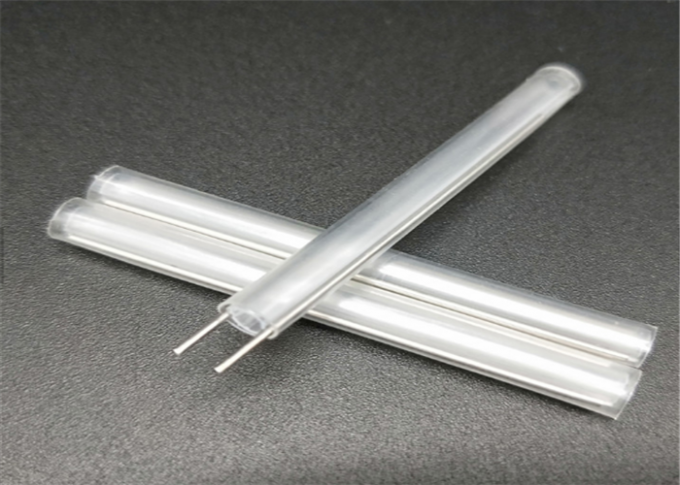

Splice Protection Sleeves Consist of cross linked polyolefin, hot fusion tubing and stainless reinforcing steel rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices.
Splice Protection Sleeves is applied to protection fiber optical splice. It is made up of stainless reinforcing steel rod, heat shrinkable tubing and cross linked polyolefin. Rebuild the covering layer of the fiber and provide excellent mechanical strength in the joint. Guarantee good optical transmission performance. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.
Splice Protection Sleeves Description:
Splice Protection Sleeves Parameter:
Type | Splice Protection Sleeves | Fusion Tube | Steel Rod | Package | |||
| O.D.after recovered (±0.1mm) | length(L) (±1mm ) | Inside dia.(D) (±0.1mm) | Length (±1mm) | Dia.(d) (±0.1mm) | Length (±1mm) | ||
| FOSP-3.0x60H | 3.0 | 60 | 1.5 | 60 | 1.5 | 55 | 100pcs/bag |
| FOSP-3.0x55H | 3.0 | 55 | 1.5 | 55 | 1.5 | 50 | 100pcs/bag |
| FOSP-3.0x45H | 3.0 | 45 | 1.5 | 45 | 1.5 | 40 | 100pcs/bag |
| FOSP-3.0x40H | 3.0 | 40 | 1.5 | 40 | 1.5 | 35 | 100pcs/bag |
| FOSP-2.6x60H | 2.6 | 60 | 1.5 | 60 | 1.2 | 55 | 100pcs/bag |
| FOSP-2.6x55H | 2.6 | 55 | 1.5 | 55 | 1.2 | 50 | 100pcs/bag |
| FOSP-2.6x45H | 2.6 | 45 | 1.5 | 45 | 1.2 | 40 | 100pcs/bag |
| FOSP-2.6x40H | 2.6 | 40 | 1.5 | 40 | 1.2 | 35 | 100pcs/bag |
| FOSP-2.4x60H | 2.4 | 60 | 1.5 | 60 | 1.0 | 55 | 100pcs/bag |
| FOSP-2.4x55H | 2.4 | 55 | 1.5 | 55 | 1.0 | 50 | 100pcs/bag |
| FOSP-2.4x45H | 2.4 | 45 | 1.5 | 45 | 1.0 | 40 | 100pcs/bag |
| FOSP-2.4x40H | 2.4 | 40 | 1.5 | 40 | 1.0 | 35 | 100pcs/bag |
Features of Splice Protection Sleeve
1.Single holed(preshrunk) ends eliminates improper fiber threading

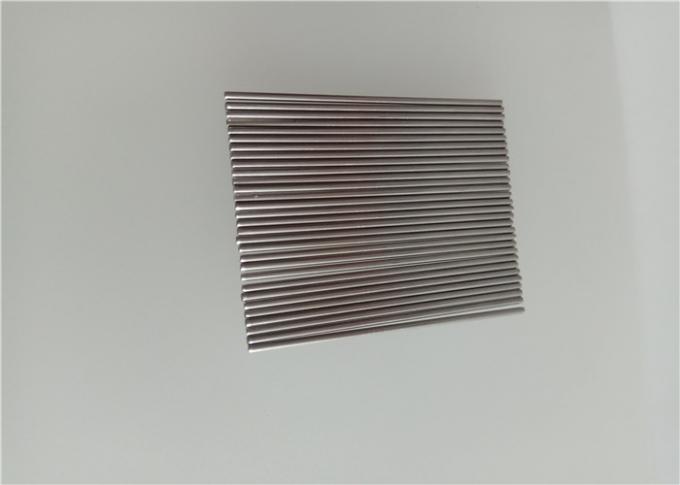

2.Smooth, deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
3.Extended liner length prevents contact between the fiber and the backbone
4.Clear sleeve design persign permits easy centering of splice before heating
5.Sealing structure makes the splice free from effect of temperature and humidity from environment
6.Operating temperature:-45 to +100
7.Minimum fully recovery temperature:120
Application of Splice Protection Sleeve:
1.Use the enhanced wire, hot-melt tube and cross-linked polylefin composition
2.Reconstruct the fiber coating
3.Junction to provide a good mechanical strength
4.Ensure good optical transmission properties
Certification of Splice Protection Sleeve:

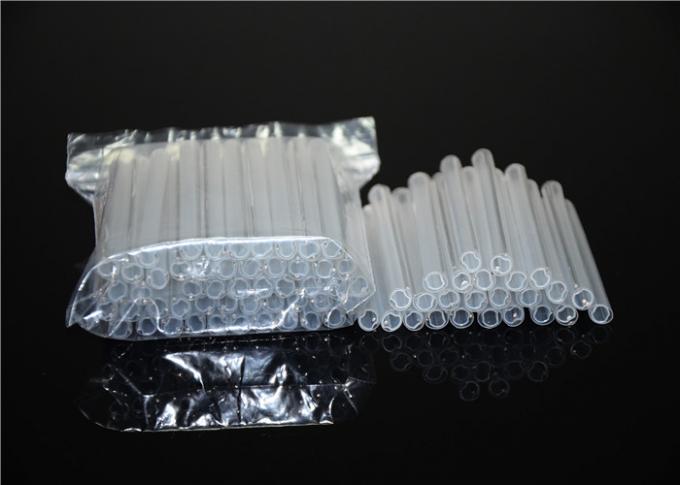

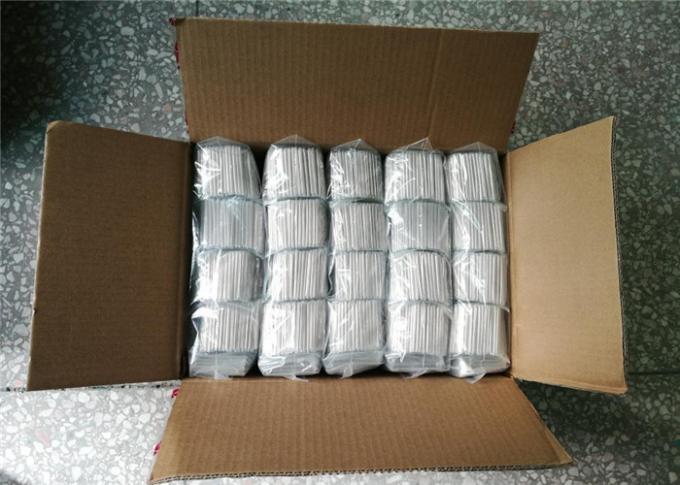

Package of Splice Protection Sleeve:
FAQ:
1.Q: Are you trading company or manufacturer?
A: We are manufacturer.
2.Q: How long is your delivery time?
A: Generally within 7-10days after payment, fast delivery.
3.Q: Do you provide samples of Splice Protection Sleeve? Is it free or extra?
A: Free sample is available.
4.Q: What is your term of payment?
A: Please pay the full amount before shipment.
5.Q: What is your terms of Splice Protection Sleeves delivery?
A: We accept EXW, FOB, CIF, DDU etc. You can choose the one which is the most convenient or cost effective for you.
6.Q:What's your advantage of Splice Protection Sleeves?
A:1. Top quality product with UL certification. Product sells good in USA, Europe, Brazil, SEA, Mid East.
2. Good Service: Soon reply for quotation. Fast delivery time. firm packing, excellent after-sales service.
3. Powerful technology, advanced facilities, standardized production management, strict testing methods.
