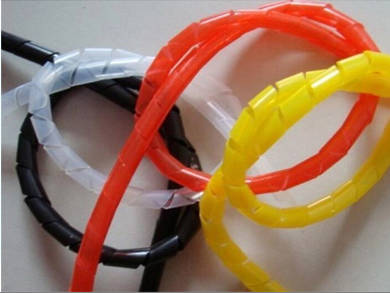

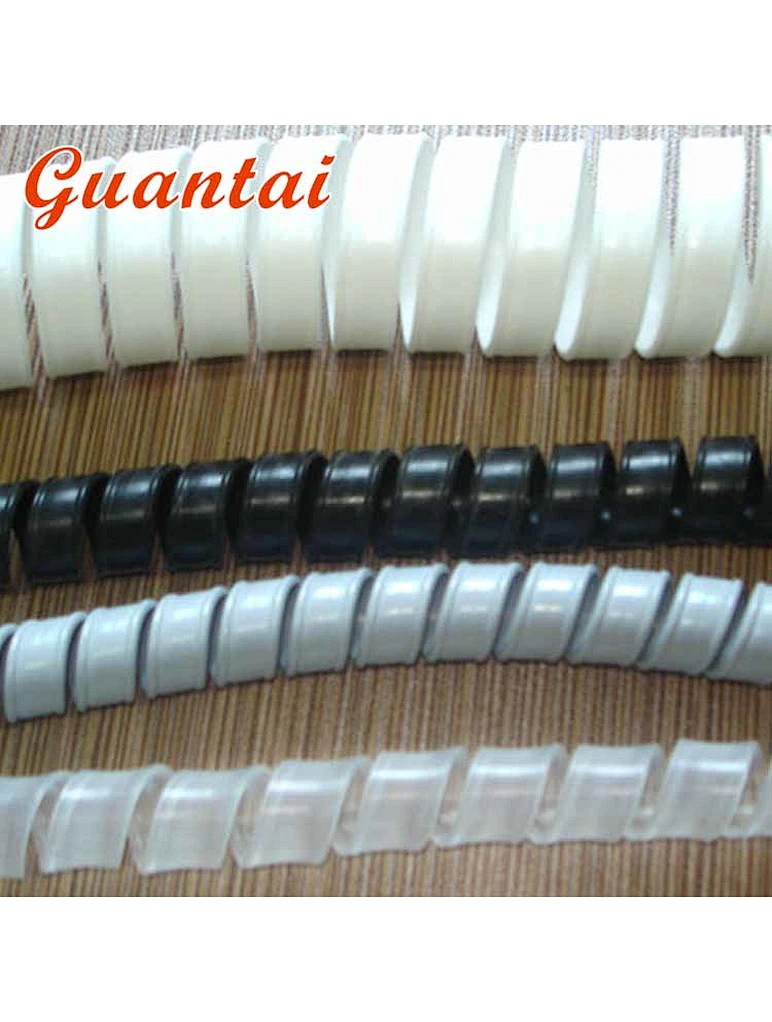

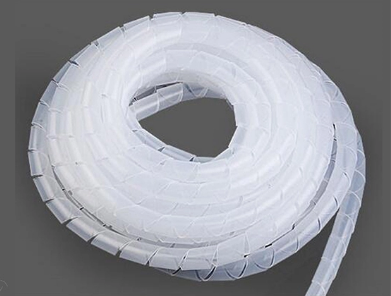

Spiral Wrapping Bands
4mm-30mm
Material: Made from PE
Usage: fix one end with safety belt first,then circle the wires clockwise to make them tighen.
Usage: fix one end with safety belt first,then circle the wires clockwise to make them tighen.
Quantity
Material:Made from PE
Usage: fix one end with safety belt first,then circle the wires clockwise to make them tighen.
Application: a protection wear for electric wires,and make them insulation ans look nice.
Parameter:
| Type | outer diameter | inner diameter | screw pitch | Wrapping Range | Length(m) | |||
GT04 | 4 | 3 | 6 | 4-50 | 45 | |||
| GT06 | 6 | 5 | 8 | 4-50 | 45 | |||
| GT08 | 8 | 7.0 | 10 | 6-60 | 35 | |||
| GT10 | 10 | 8.8 | 12 | 7.5-60 | 23 | |||
| GT12 | 12 | 10.7 | 14 | 9-65 | 17 | |||
| GT14 | 14 | 12.6 | 16 | 12-75 | 10 | |||
| GT16 | 16 | 14.6 | 18 | 12-75 | 10 | |||
| GT20 | 20 | 18.4 | 22 | 15-100 | 7 | |||
| GT22 | 22 | 20.2 | 24 | 20-130 | 6.5 | |||
| GT25 | 25 | 23 | 27 | 22-135 | 6 | |||
| GT30 | 30 | 27.6 | 32 | 27-150 | 5 |
