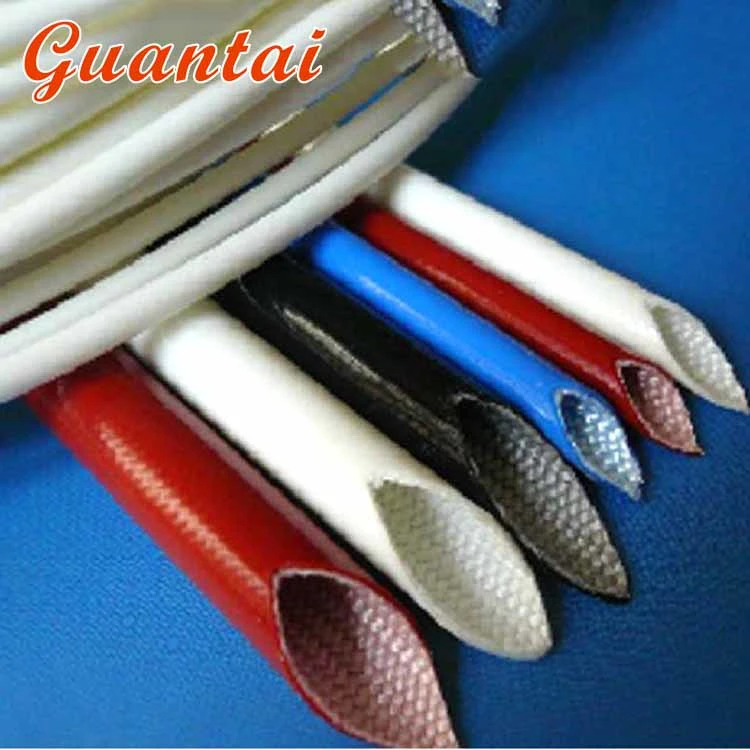

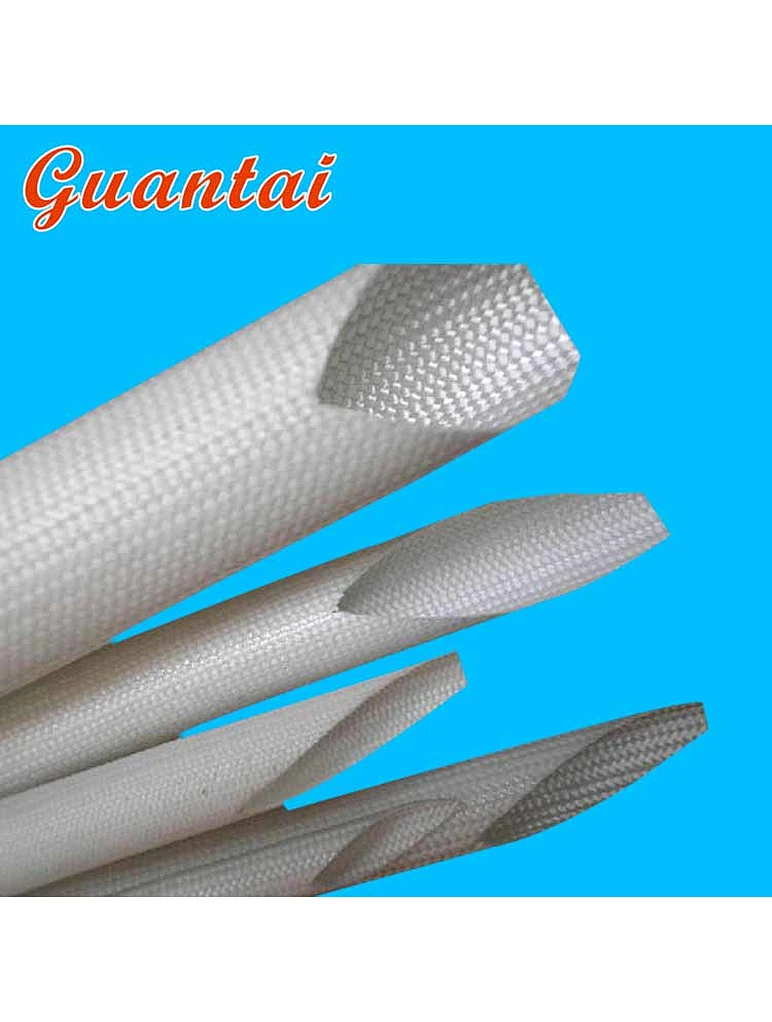

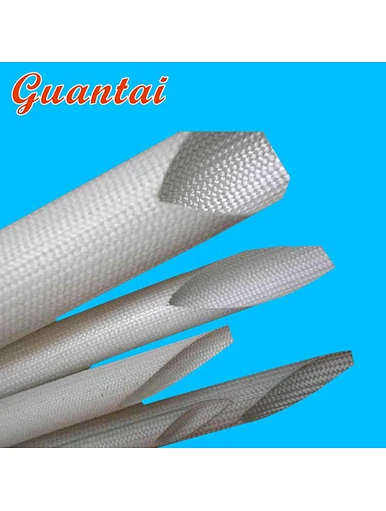

Glass Fiber Insulation Sleeve

Glass Fiber Insulation Sleeve
2.5
Glass Fiber Insulation Sleeve is made of alkali-free glass fiber woven into a tube, coated with silicone rubber on the outer layer of the tube, and then cured. It has high dielectric strength, good flexibility, heat aging resistance,oil resistance, flame retardancy, and temperature resistance up to 200 degree. Widely used in circuit insulation protection for new energy vehicles, special vehicles, rail transit, military aerospace, etc.
Quantity
 Glass Fiber Insulation Sleeve is made of alkali-free glass fiber woven into a tube, coated with silicone rubber on the outer layer of the tube, and then cured. It has high dielectric strength, good flexibility, heat aging resistance,oil resistance, flame retardancy, and temperature resistance up to 200 degree. Widely used in circuit insulation protection for new energy vehicles, special vehicles, rail transit, military aerospace, etc.

Features:
1.Operating temperature:-40°C~200°C
2.Environmental standard: RoHS,REACH
3.Color :Nature, White, Black, Red, Yellow, Blue, Green, Orange, other colors are available
4. Flame retardant rating: HB
5.Rated voltage: 1.5KV,2.5KV,4.0KV,7.0KV

Dimensions

I.D.(mm)
Wall thickness(mm)
Package
Size
Tolerance
1500V
2500V
4000V
7000V
M/Roll
Φ2.0
-0.10～0.25
0.35±0.1
0.40±0.1
0.45±0.1
0.5±0.1
100
Φ2.5
-0.10～0.25
0.35±0.1
0.40±0.1
0.45±0.1
0.5±0.1
100
Φ3.0
-0.10～0.25
0.35±0.1
0.40±0.1
0.45±0.1
0.5±0.1
100
Φ3.5
-0.10～0.35
0.4±0.1
0.45±0.1
0.50±0.1
0.55±0.1
100
Φ4.0
-0.10～0.35
0.4±0.1
0.45±0.1
0.50±0.1
0.55±0.1
100
Φ4.5
-0.10～0.35
0.4±0.1
0.45±0.1
0.50±0.1
0.55±0.1
100
Φ5.0
-0.10～0.35
0.4±0.1
0.45±0.1
0.50±0.1
0.55±0.1
100
Φ5.5
-0.10～0.40
0.45±0.1
0.50±0.1
0.55±0.1
0.60±0.1
100
Φ6.0
-0.10～0.40
0.45±0.1
0.50±0.1
0.55±0.1
0.60±0.1
100
Φ7.0
-0.10～0.50
0.45±0.1
0.50±0.1
0.55±0.1
0.60±0.1
100
Φ8.0
-0.10～0.50
0.45±0.1
0.50±0.1
0.55±0.1
0.65±0.1
50
Φ9.0
-0.10～0.50
0.45±0.1
0.50±0.1
0.55±0.1
0.65±0.1
50
Φ10.0
-0.20～0.70
0.50±0.15
0.55±0.15
0.65±0.15
0.7±0.15
50
Φ11.0
-0.20～0.70
0.50±0.15
0.55±0.15
0.65±0.15
0.7±0.15
50
Φ12.0
-0.20～0.70
0.50±0.15
0.55±0.15
0.65±0.15
0.7±0.15
50
Φ13.0
-0.30～0.80
0.55±0.15
0.60±0.15
0.70±0.15
0.75±0.15
50
Φ14.0
-0.30～0.80
0.55±0.15
0.60±0.15
0.70±0.15
0.75±0.15
50
Φ15.0
-0.30～0.80
0.55±0.15
0.60±0.15
0.70±0.15
0.75±0.15
50
