●High withstand to corrosive fluids in extreme temperatures
●Flame retardant
●Very flexible
●Easy to stamped
●Continuous operating temperature:-55℃-200℃
●Shrink temperature:175℃
●Meets 23053/13

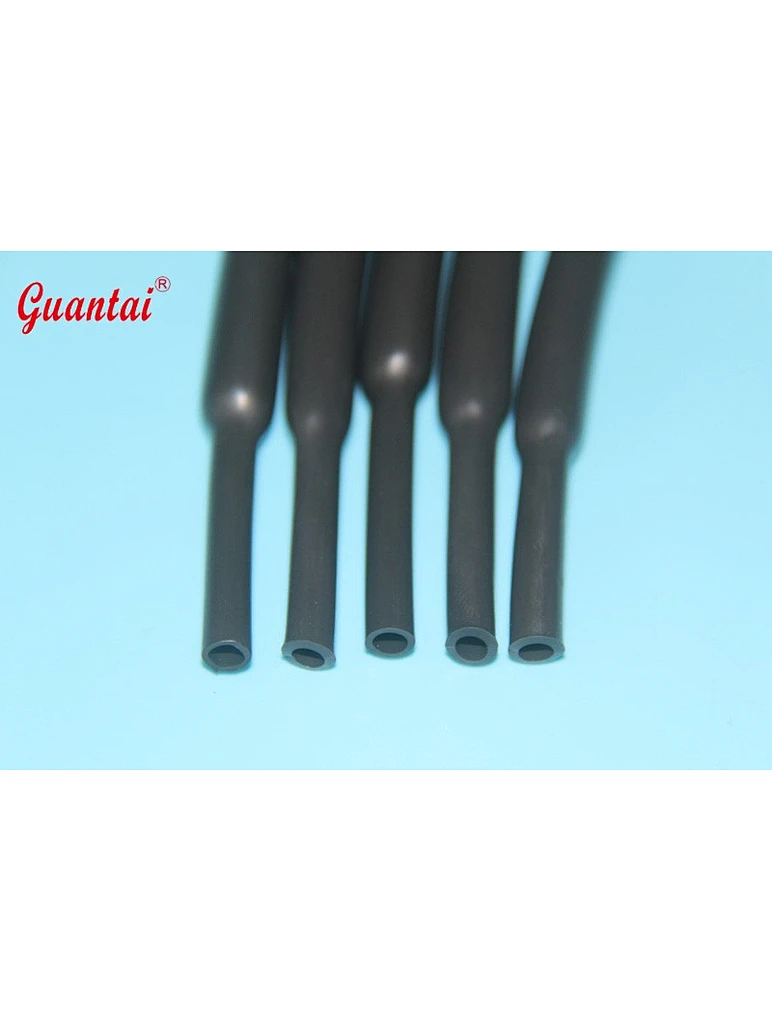

Thin wall fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, military/ aerospace industrial applications requiring outstanding heat and fluid resistance.
Features
- 2:1 shrink ratio
- High withstand to corrosive fluids in extreme temperatures
- Flame retardant
- Very flexible
- Easy to stamped
- Continuous operating temperature:-55℃-200℃
- Shrink temperature:175℃
- Meets 23053/13
Technical Data
Property | Test Method | Stantard | Typical Performance | ||
Tensile Strengtn(MPa) | ASTM D2671 | ≥8.5 | 10.0 | ||
Elongation(%) | ASTM D2671 | ≥250 | 300 | ||
Tensile Strengtn after aging (MPa) | UL224 158℃X168hr | ≥7.3 | 8.5 | ||
Elongation after aging(%) | UL224 158℃X168hr | ≥200 | 250 | ||
Dieletric strength(kv/mm) | IEC243 | ≥15 | 17.5 | ||
Volume resistivity(Ω.cm) | ASTM D876 | ≥1X109 | 2.5X109 | ||
Flammability | VW-1 | Pass | Pass |
Dimensions
Size | Expanded | Recovered | Standard | ||||
Inch | mm | Internal | Internal | Wall | Package | Round/Flat | |
Diameter | Diameter | Thickness | M/Spool | ||||
(mm) | (mm) | (mm) | |||||
1/8 | 3.2 | 3.2 | 1.6 | 0.75±0.20 | 200 | Round | |
3/16 | 4.8 | 4.8 | 2.4 | 0.89±0.20 | 100 | Round | |
1/4 | 6.4 | 6.4 | 3.2 | 0.89±0.20 | 100 | Round | |
3/8 | 9.5 | 9.5 | 4.8 | 0.89±0.20 | 50 | Round | |
1/ 2 | 12.7 | 12.7 | 6.4 | 0.89±0.20 | 25 | Round | |
3/4 | 19.0 | 19.0 | 9.5 | 1.07±0.30 | 25 | Round | |
1 | 25.4 | 25.4 | 12.7 | 1.25±0.30 | 25 | Round | |
1-1/ 2 | 38.1 | 38.1 | 19.0 | 1.40±0.30 | 25 | Round | |
2 | 50.8 | 51.0 | 25.4 | 1.65±0.30 | 25 | Round | |
